Internal part number:BUSF04B2N1225

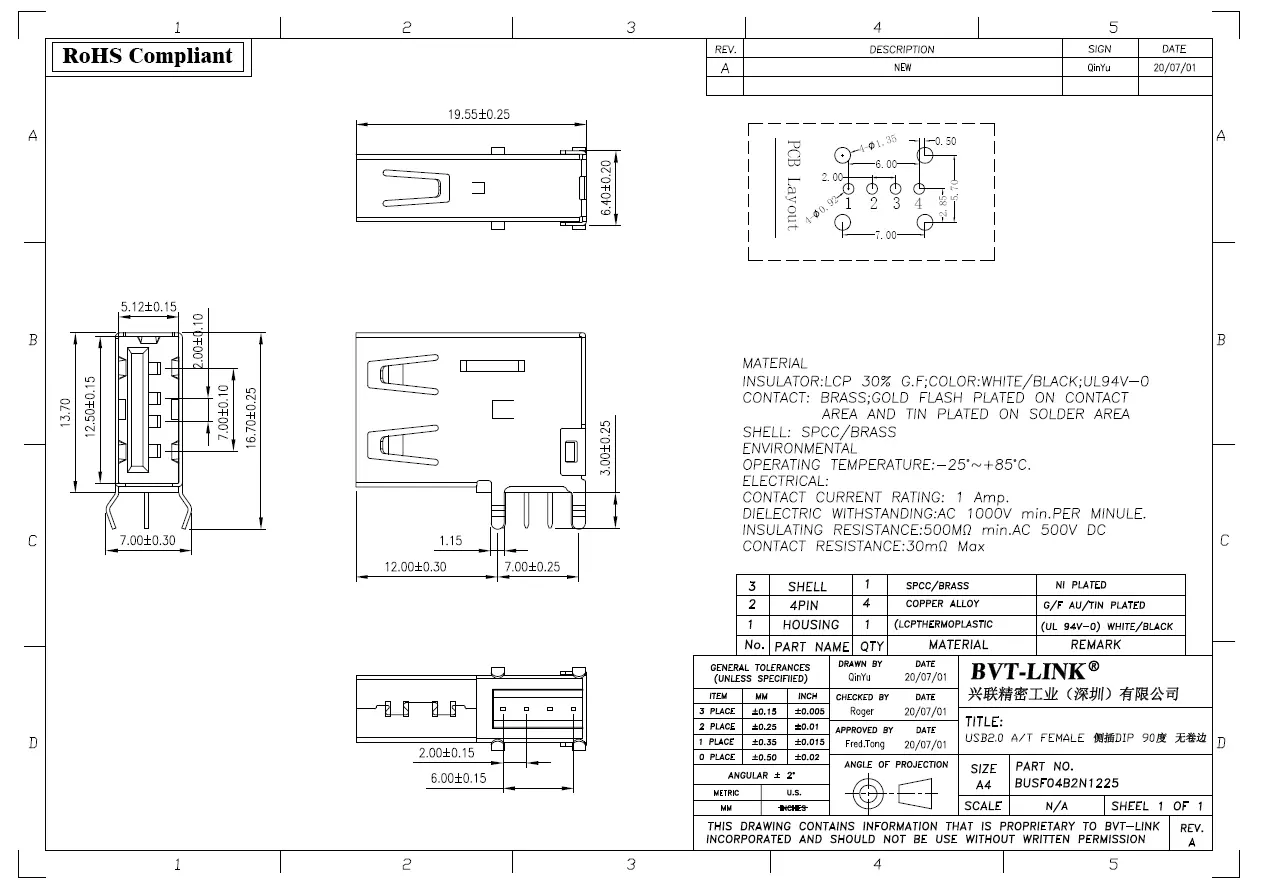

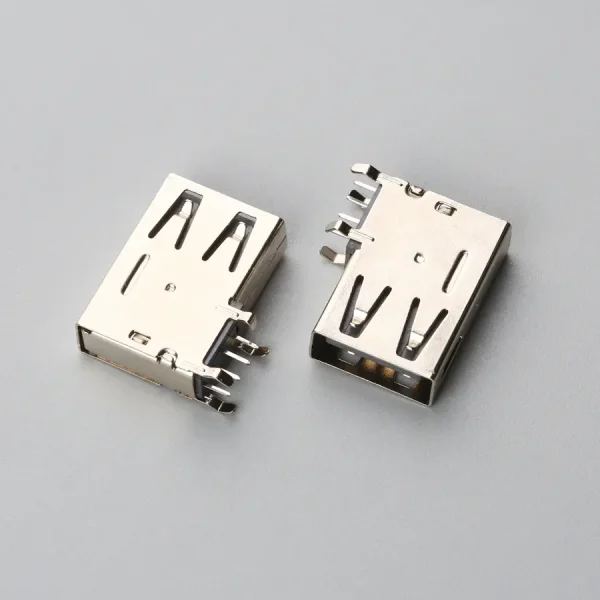

Product Specifications: USB2.0 AF side plug DIP without curling feet
Connector Type: A
Version: 2.0
Connector Shape: Standard
Connector and Body Type: Female
Number of ports: 1

Share to:

USB is “Universal Serial Bus”, the Chinese name is Universal Serial Bus. A way that electronic products can be connected to each other. There are three types of USB interfaces: USB1.1 and USB2.0, and usb3.0. In theory, the transmission speed of USB1.1 can reach 12Mbps/sec, while USB2.0 can reach the speed of 480Mbps/sec, and it can be backward compatible with USB1.1. The transfer rate of USB3.0 is about 3.2Gbps (ie 320MB/S). The theoretical maximum rate is 5.0Gbps (ie 500MB/S)

Product Advantages:

1. With charging and data transmission functions

2. Support hot swap, plug and play function

3. Integrate serial, keyboard, mouse and game ports

4. Compatible with asynchronous and synchronous data transmission methods, the performance is 40 times higher than that of USB 1.1

Application:

Portable Music Player

digital camera

Pocket PC

Handheld devices

controller board

laptop
