Internal part number: BRJF085B3N1293SR

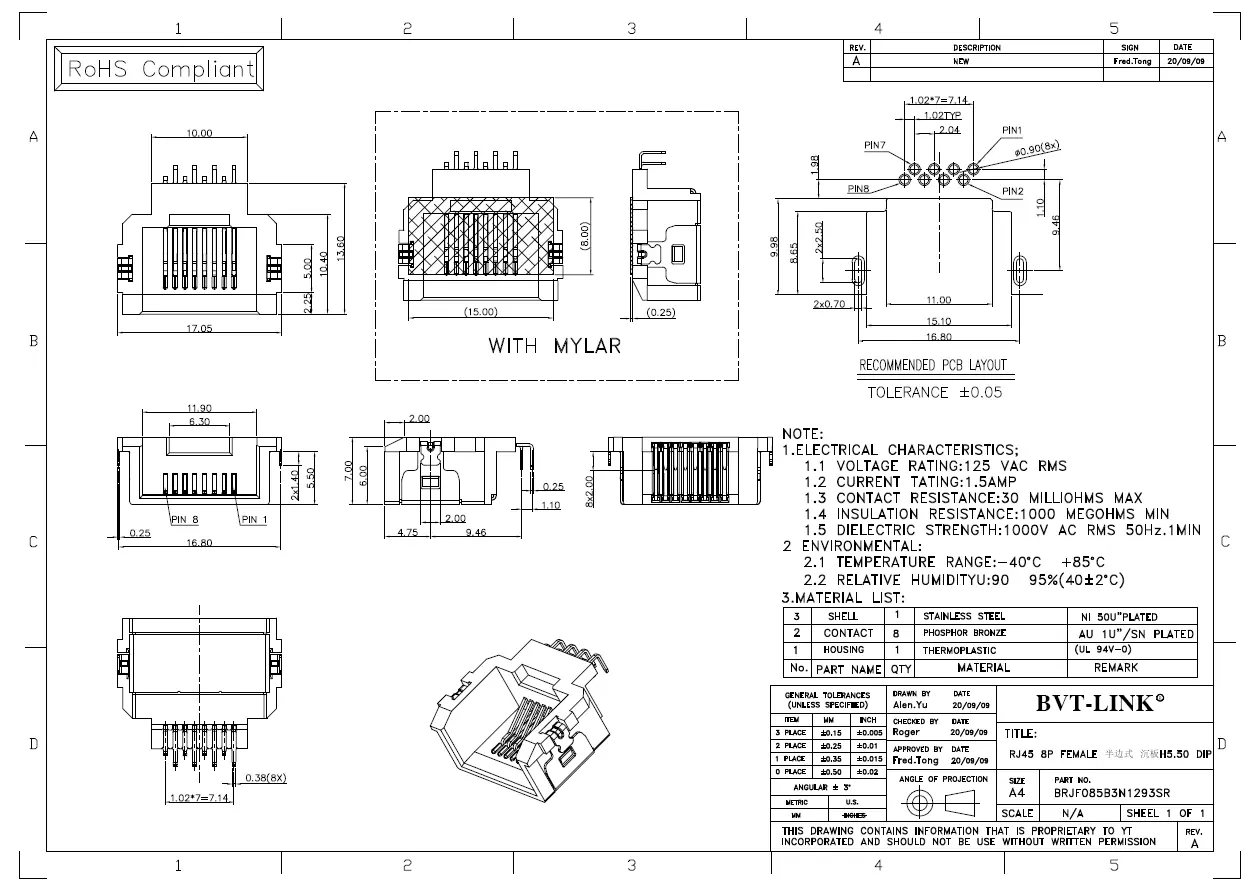

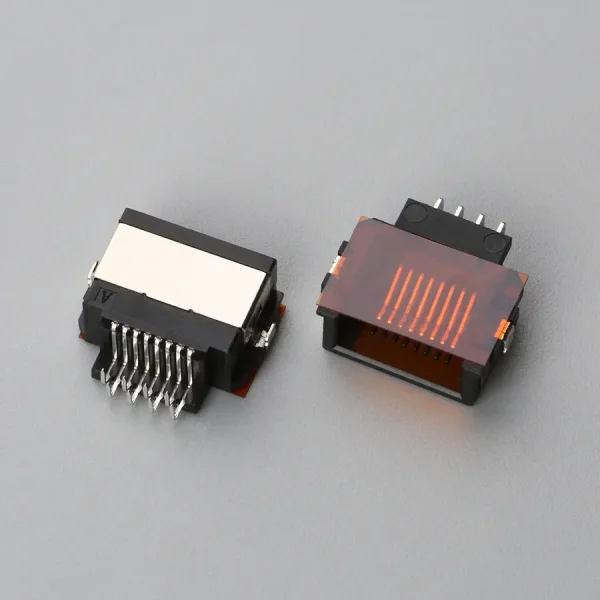

Product Specifications: RJ45 half edge countersunk plate DIP H=5.50mm
Connector Type: A
Version: 2.0
Connector Shape: Standard
Connector and Body Type: Female
Number of ports: 1
Share to:
RJ is the abbreviation of Registered Jack, which means “registered jack”. In FCC (Federal Communications Commission Standards and Regulations), RJ is an interface that describes a public telecommunication network, and RJ45 of a computer network is a common name for a standard 8-bit modular interface. RJ45 is a common network cable interface, also called crystal head, which is usually connected to the network card. RJ45 is a kind of information socket (ie, communication terminal) connector in the wiring system. The connector consists of a plug (connector, crystal head) and a socket (module). The plug has 8 grooves and 8 contacts.
Product Advantages：
RJ45 connectors provide ruggedized equipment and IP20-IP67 degrees of protection. No tools are required, the time is significantly shortened, and the cost can be reduced very well.
Material and performance：
1. Web server
2. Routing cat
3. Hub
4. Personal PC terminal
5. Printer
