Internal part number: BHDF192B1A11344SR

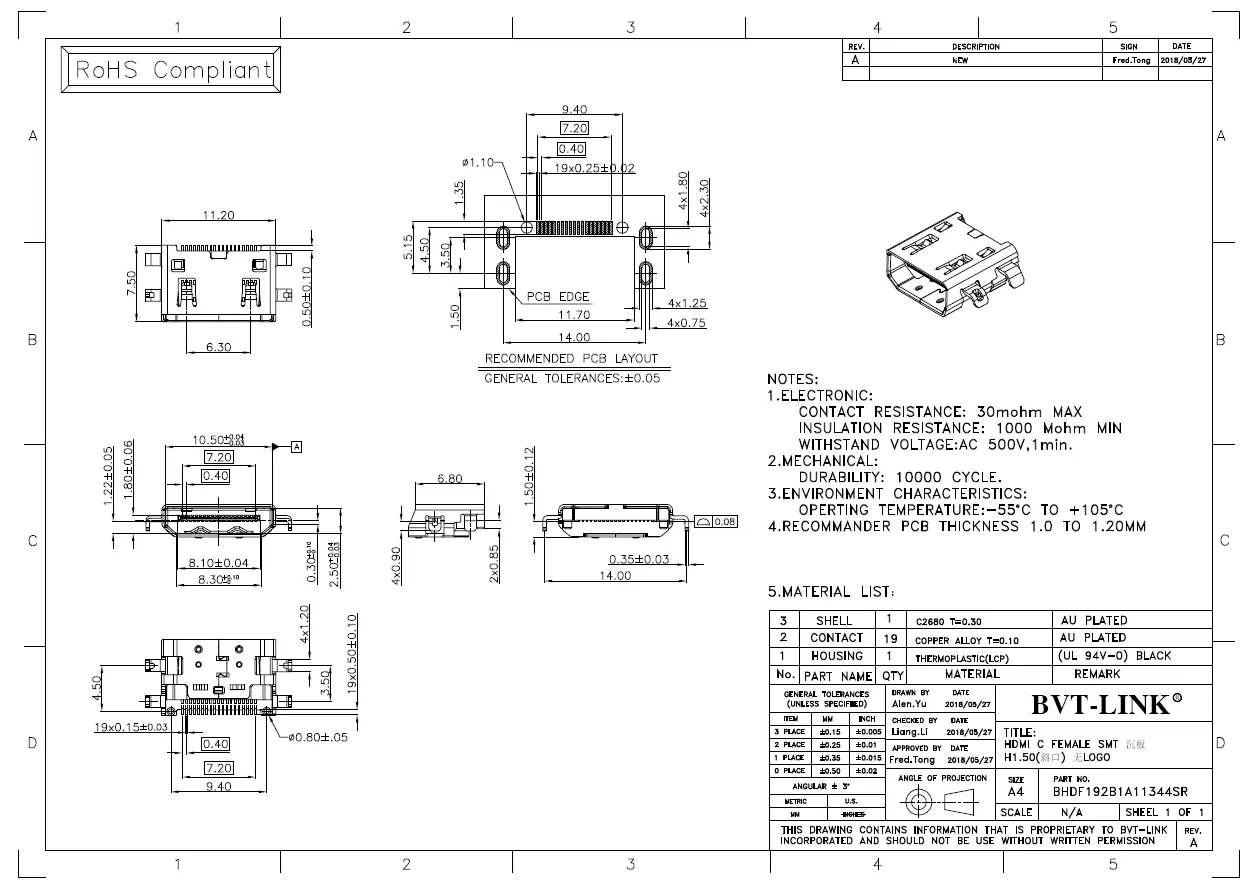

Product Specifications: HDMI CF bevel countersunk plate SMT H=1.50mm
Connector Type: A
Version: 2.0
Connector Shape: Standard
Connector and Body Type: Female
Number of ports: 1

Share to:

High Definition Multimedia Interface (High Definition Multimedia Interface) is a fully digital video and sound transmission interface that can transmit uncompressed audio and video signals. High-definition interfaces can be used in set-top boxes, DVD players, personal computers, TVs, game consoles, integrated amplifiers, digital audio and TV sets. HDMI can send audio and video signals at the same time. Since the audio and video signals use the same wire, the installation difficulty of the system line is greatly simplified



HD interface connector:

With video and audio one-line output function



HD interface connector:

Notebooks, docking stations, monitors, LCD TVs, HD DVD players,etc.

15.BHDF192B1A11344SR-HDMI CF 斜口沉板式SMT H=1.50mm

FEATURED PRODUCTS

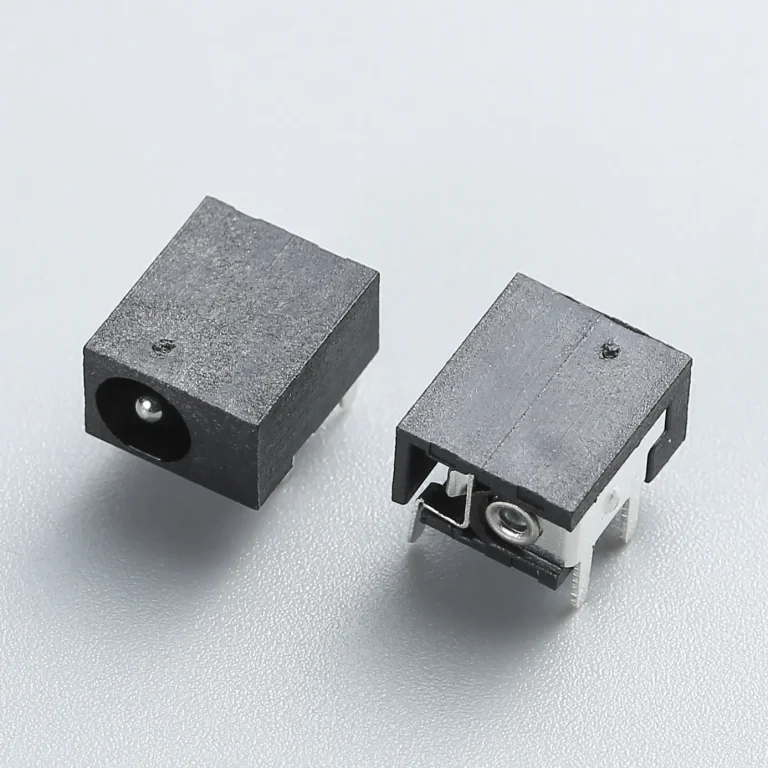

1.BDCF05B1A12004 DC JACK FEMALE RVS H1.60(平口)
